Product Introduction

Model:

WSA-A01

Product Introduction:

Product Description : 1、Fold World Space Antenna,support GSM/GPRS/3G band; 2、Mounting Method:Magnet/Wall hangings; 3、This specification covers circular polarized antenna unit for receiving satellite signal for Worldspace rad

SLU0226DS
SLU0226DS
Product description
Product Description
1、Fold World Space Antenna,support GSM/GPRS/3G band;
2、Mounting Method:Magnet/Wall hangings;
3、This specification covers circular polarized antenna unit for receiving satellite signal for Worldspace radio system;

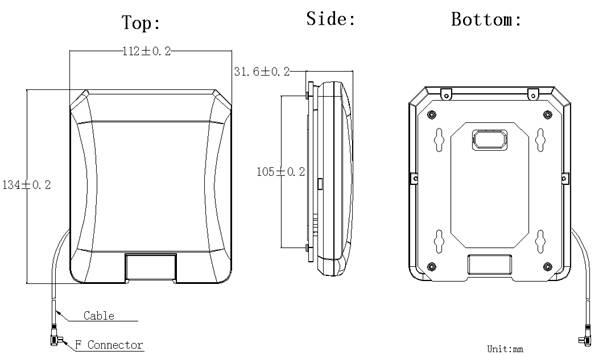

Product Dimension

Product Introduction

Antenna
Center Frequency
1472±20 MHz
Bandwidth
40MHz min
Peak Gain
6dBic
Polarization RHCP/LHCP
LNA
Center Frequency
1472±20 MHz
Gain
30±2dB
Noise Figure
1.5dB max
Image Rejection
(Measured at 1262MHz)
40dB
Supply Voltage RHCP DC 3.0±0.2 V
Supply Voltage LHCP DC 2.3±0.2 V
Current 16±2 mA
Impedance 50Ω
V.S.W.R 2.0dB max
Mechanical Cable RG174
Connector GT5/SMA/FAKRA or others
Radome Material ABS
Ingress Protection IP67
Mounting Method Magnet/Wall hangings
Environmental Operating Temperature -20℃ to +80℃
Relative Humidity Up to 95℃
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
